Weaving: Plain weaving, twill or dutch weaving, Five heddle weave wire cloth.
Features: Stainless steel extruder screen is acid-resisting, alkali-resisting, heat-resisting and wear-resisting.
Five Heddle Mesh Filter Materials:
Application: Used for industries of mining, oil, chemical, food, pharmaceutical, machine making, scientific research, aviation, etc.
Plain steel wire mesh and stainless steel wire mesh can be welded together to form multi layer screen filters.
Diameter Scope:from 1" to 30"
SS Extruder Screen can be supplied in multi-layers of 2, 3, 4 or 5 pieces of wire mesh cloth fixed by spot welding or frames.
Reverse Dutch Wire Cloth:
|
Twilled Weave 316 SS Mesh Cloth:
|
|---|
Material: SUS316
Mesh roll Size: 1.5mx30m
Woven mesh: 60 mesh and 80 mesh, wire diameter 0.25mm and 0.3mm
Application: Plastic Recycling Filter
SS extruder screen mesh cylinders
Desigh: A cap on one end and open on the other end with a flange.
Measurements: Length 900 mm
Cylinder diameter 120mm
Flange diameter: 140mm, with 4 fixing holes.
Material: Stainless steel 304
Mesh: Perforated or woven.
Candle Filter, for BOPP machine
Filter media: 3 layer mesh.
Filtration mesh from inside to outside :
First Layer and Second Layer, used as support mesh layer, Welded together.
Dimensions, Length 703.5 mm
Inside Diameter : 49.2 mm
Mesh: SS 304 1mmx1mm x 0.5mm wire diameter + 40 mesh x 0.2mm wire diameter
Third layer, works as filter layer
Mesh: 80 mesh
Material: SS316
With Dimensions Length 714 mm.
Inside diameter 52.2 mm
Cylinder Filter Drawing Reference
For extruder filter
Candle filter: Filter layer: Stainless steel mesh, 130 mesh, filtration 20 micron
Candle Filter: Filter layer: Stainless steel mesh, 135 mesh, filtration 20 micron
Candle filter: Cylinder diameter 34.5mm
Candle Filter Drawing Reference
Filter mesh used as medical tubing for extruder machine
Screen filter mesh size 2.5" 40
Screen filter mesh size 2.5" 300
Size: 6"wide x 24" long
Type: Pleated filter, sintered mesh 10 micron, reinforced
Breaker plates with drilled holes on top and bottom
2 layer design
Material: SUS 304 Extruder Mesh
Woven type:
Dutch Weave
Disc dimension: 220mm x 220mm, 1" center hole
For powder processing
Filter net for beam extrusion line
Size: 1.48 m x 3.435m
Net mesh: 120mesh
Mesh net thickness: 0.09
Extruder screen net supplied in rolls or precut discs
Net: Mesh 5x40.
Wire diameter 0.8/0.7 mm.
Material: AISI 304, SS 316
Disc sizes:
d.82mm and d.113mm
Rectangular extruder screen can be supplied in single layer, 2 layers, 3 layers, 4 layers or 5 layers.
Material: stainless steel wire in 304,304l, 316l, 316, 201, 202. Also low carbon steel wire, copper,brass wire,black iron wire,inconel,monel, nickel,etc. Stainless steel woven wire cloth, copper wire cloth, galvanized wire mesh.
Mesh count:2 -635 mesh
Wire diameter:0.018-1.6mm
Weave pattern:plain,twill,dutch weave.
Sizes available for this type of extruder screen packs:
L =75-397
B=55-94

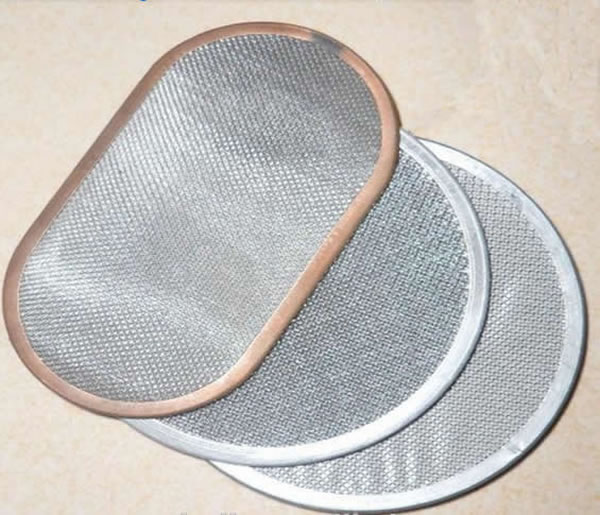

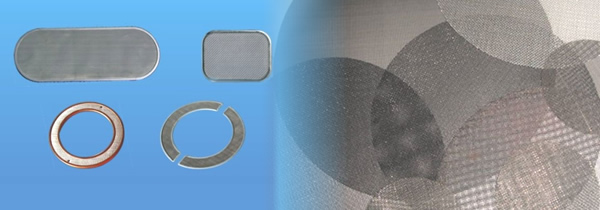

Stainless Steel Square Mesh Extruder Screen Packs with Aluminum Frames or Rims

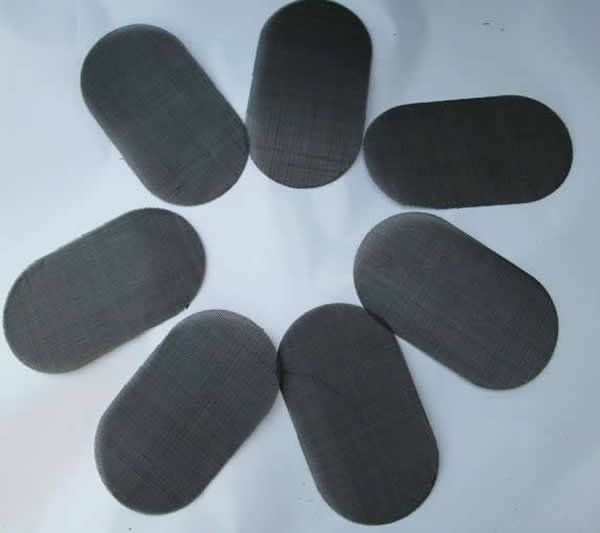

Black Wire Cloth
Extruder using 100 micron stainless steel mesh screen
Stainless Steel Extruder screen filters use for Blown Film Extrusion
Material:sus304 or sus316
Thickness:0.02mm ,0.03mm
Hole:0.03-0.04mm
SS Mesh Filtering Screen, 300mm, Mild Steel, 50 mesh x 0.2mm wire

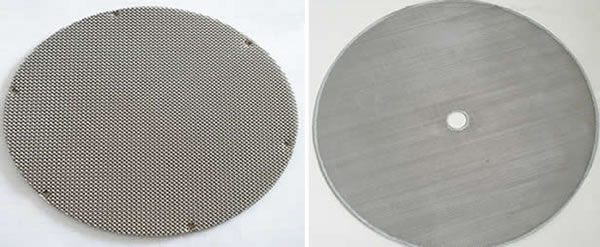

Stainless steel screen filter disc
Thickness can be achieved between 0.03mm to 1.5mm.
Size can be achieved between 1mm* 1mm to 600mm* 780mm.
Smallest open hole is 0.1mm.
Smallest line width is 0.025mm.
Product precision is ± 0.01mm (common difference). Its generally 20% of material thickness.
