Disc Type Filter Screen for Thermoplastics Extrusion

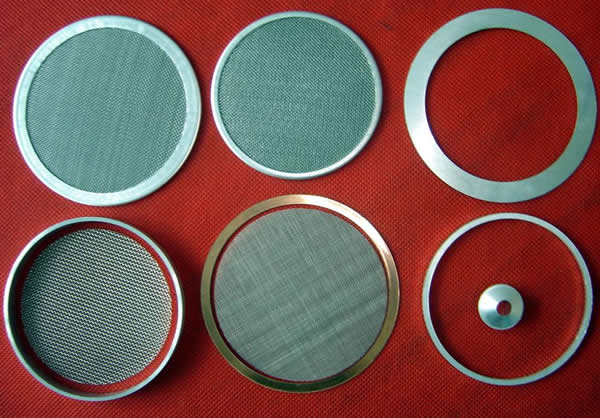

Circular and Annulus filter disc Extruder Screens of Stainless Steel, Brass, Copper and Other metals

Disc Filter Screen is also known as Circular Extruder Screen which serves the purpose for extremely thin and fine extrusion process in industrial sectors. Supplied in solid round discs or annulus discs. Materials can be single layer or multilayer metal woven wire fabrics.

Extruder screen wire mesh filters are used in the plastics industries to remove the remaining impurities of extrusion:

Material: Stainless steel wire mesh (304, 316, 316 L), low carbon iron wire, copper wire.
Wire diameter : 0.025-2.5mm.
Mesh : 10-1500.
The shape can be disc, round, rectangle, loop, oval and kidney-shaped, etc.
The frame materials can be stainless steel, aluminum and nickel-plated copper.
The filters can be single layer or multilayer.
Usages: Circle type filter screen packs are mainly used in filtration of chemical fiber and polyester film industry.

Toroidal extruder screen disc size series
300 × 40 × 3 mm: 2 layer
79 × 76 × 3 mm: 5 layer
257 × 87 × 2mm: 3 layer
90 × 80 × 2.4mm: 4 layer

•Highly durable

Applied In Following Industries
•Petro chemical
•Water treatment plant
•Food processing

Circular Filters for low-density plastic extruders
Square Hole Mesh Discs for Low Density Plastic Extruders
Circle filter Ǿ 66mm x Mesh 100
Circle filter Ǿ 63mm x Mesh 20

   Single Layer Extruder Screen DiscRimmed SS Mesh Filter Screen for Polymer Melt
Stainless Steel Mesh Annulus Disc Screen, With Bonded Welded Rims, Single and Multi Layer Packed Filter Screen Discs
AISI 304 Filter Mesh Discs for Polymer Melt Filtration
