Products Catalog: Extruder Screen and Wire Mesh Filter Elements

Three series of filter screen products: extruder screen; mesh filters & strainers; metal wire mesh cloth as filter media.

Extruder Screen Series: Featured Products

Wire mesh extruder Screen filters for Plastic Extrusion Melt Filtration, Single Layer Cut Circular Stainless Steel Mesh Pieces

SS Square Hole Mesh Discs
304L Square Wire Mesh 80x80 Mesh Plain Woven Cloth Disk

Wire Cloth Packs Rimmed
Accurate Opening Extruder Screen of Sintered SS Mesh Multi Layer Sheet, with Thin Frame of Aluminum


Woven Wire Mesh Multi Layer Screen Packs

General Types and Materials:

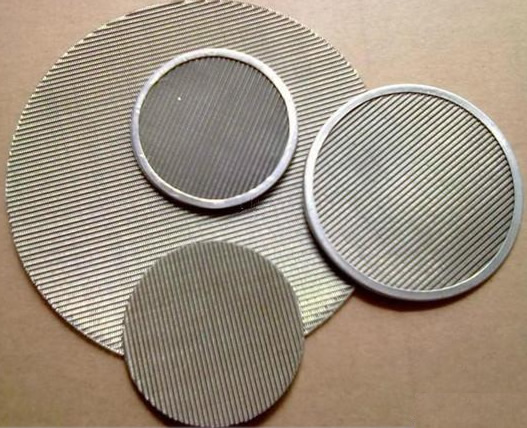

  • Woven Wire Cloth Extruder Screen For Plastic Melt Filtration
  • Extruder Screens For Polymer Melt Filters
  • Stainless Steel Wire Mesh Extruder Filter Discs and Leafs
  • Stainless Steel Mesh Extruder Screen Packs
  • Wire Cloth Extruder Screens
  • Extruder-Screen Packs
  • 304 and 316 Stainless Steel Extruder Filter Mesh Discs

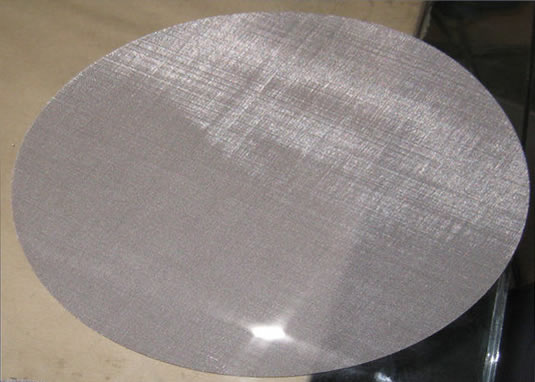

  • Sintered Wire Cloth Discs and Packs
  • Reversed Dutch Weave Stainless Steel Wire Cloth Filter Screen
  • Multilayer Extruder Screen Packs With Spot Welded Frames
  • Single Layer Net Disc Extruder Screen

Mesh Screen and Plates for Extruders
Extruder Filter mesh, 1”. Filter up to 0.3mm particles, for PP plastic filtration
Extruder breaker plate, 1”. for PP plastic extrusion.


Applied in the following fields:

•Plastic and Rubber industry ( production of molded rubber components, extruded rubber components, rolling foam rubber components, plastic injection moulding & plastic components)
•Chemical industry
•Aeronautic industries
•Water treatment plant
•Food processing industries
••Petroleum chemical industries.



Wire Mesh (Mainly Stainless Steel) Filter Elements and Strainers

General Types:
Cylinder Filter Cartridges;
Candle Filters;
Stainless Steel Wire Mesh Pleated Filter Elements with Perforated Tube Support Layer;
Temporary Conical Strainers;
Basket Filter Strainers;
Plate Strainers;
Perforated Tubes in Brass and Stainless Steel for Filter Tubing uses;
Tea strainers, colanders, mesh strainers for Kitchen and High temperature uses.

Stainless Steel Wire Mesh, Fine Filter Grade, Filter Media Series:

Stainless steel wire mesh is supplied with the following patterns:
Plain, Twill, Dutch Plain, Dutch Twill, Dutch Reverse, Five Heddle. Or multi layer sintered sheet of these ss mesh combined.

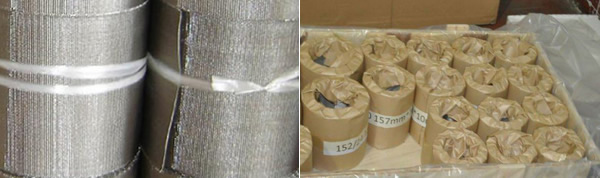

Reverse Dutch Weaving Mesh Belt Sizes:

Mesh count Wire diameter
260/40 0.15mm/0.25mm
200/40 0.17mm/0.27mm
180/18 0.27mm/0.45mm
132/17 0.32mm/0.45mm
152/24 0.27mm/0.40mm
72/15 0.45mm/0.55mm

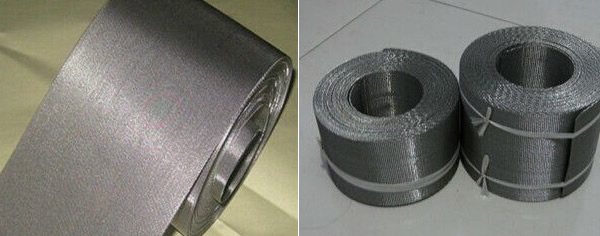

Reverse Dutch wire cloth is mainly used in fine extrusion for preventing impurities.

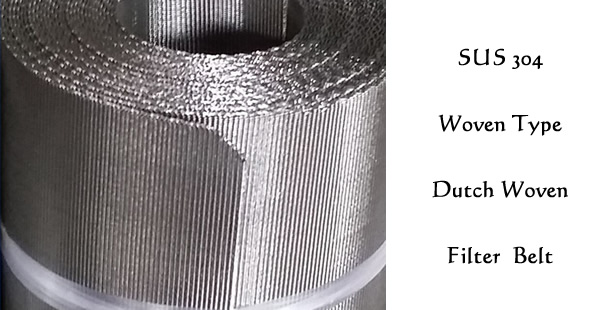

SUS 304 Woven Dutch Filter Screen Belt: 316L Filter Cloth

Products
  • Extruder Screen Packs
  • Disc Type Extruder Screen Filter
  • Extruder Screen Mesh Cylinder
  • Single Layer Wire Mesh Disc
  • Rimmed Filter Screen Packs
  • Stainless Steel Mesh Disk with Frame
  • Stainless Steel Mesh Extruder Screen
  • SS Mesh Pack Screen
  • Filter Cartridges
  • Brass Perforated Tubes
  • Stainless Steel Filter Tubes
  • Polymer Melt Filter Discs, Screens and Elements
  • Multi-layer Wire Mesh Pleated Filter
  • Leaf Filter Screen
  • Mesh Basket Filter
  • Mesh Conical Strainers
  • Plain Weave Wire Mesh 304, 316
  • Twilled Weave Stainless Steel Mesh
  • Filter Dutch Weave SS Wire Cloth
  • Brass Mesh
